Acoustic Instrument Effects Pedal
SKU
Get notified first when this product is available
NOTIFY ME
"*" indicates required fields

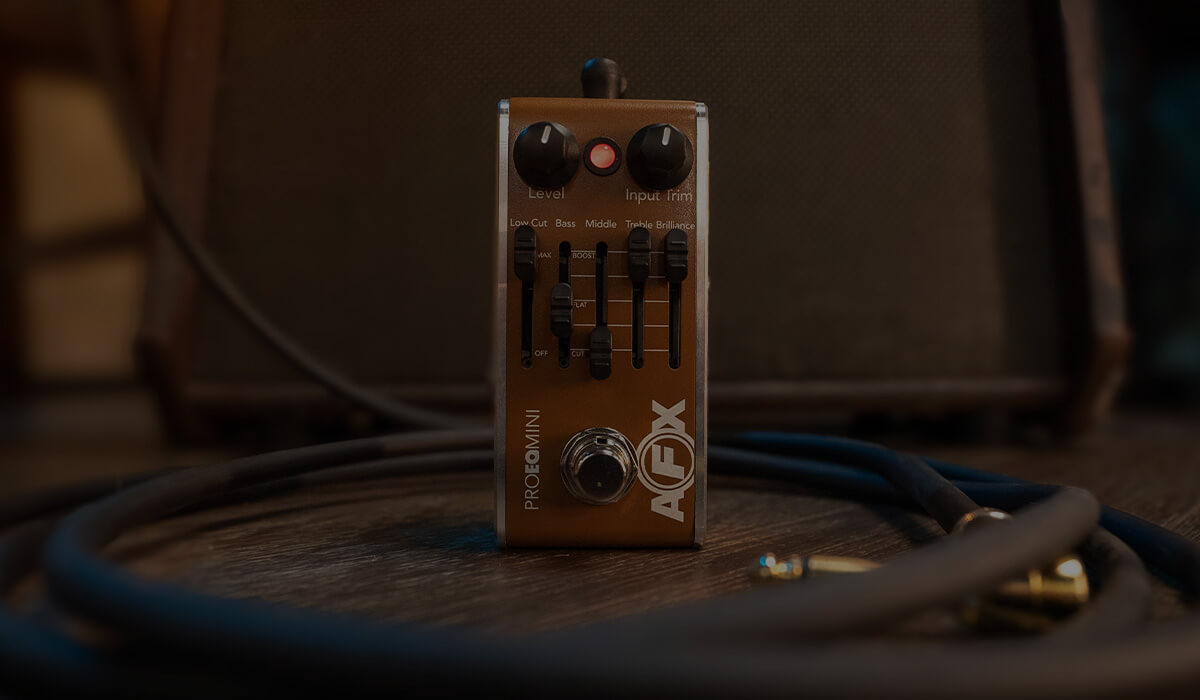

Based on the highly-regarded Fishman Platinum series of instrument preamps, AFX Pro EQ Mini offers quality preamplification and critical equalization voiced specifically for acoustic instruments.
This is no off-the-shelf graphic EQ – plug in and your signal begins with a high-impedance instrument preamp to condition nearly any passive or active pickup.

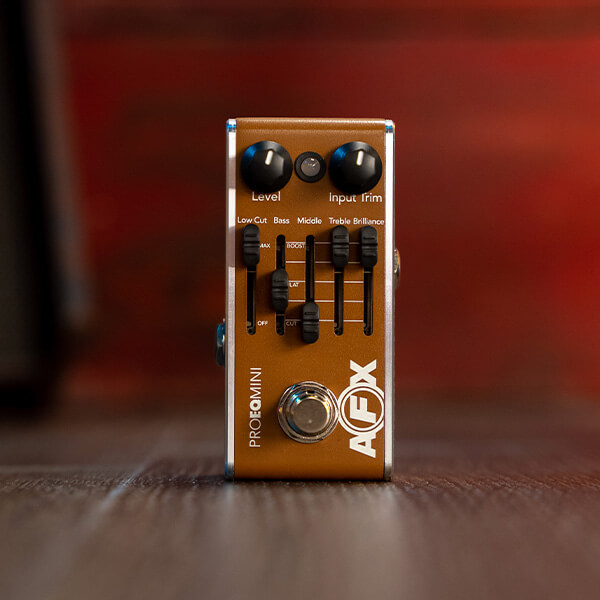

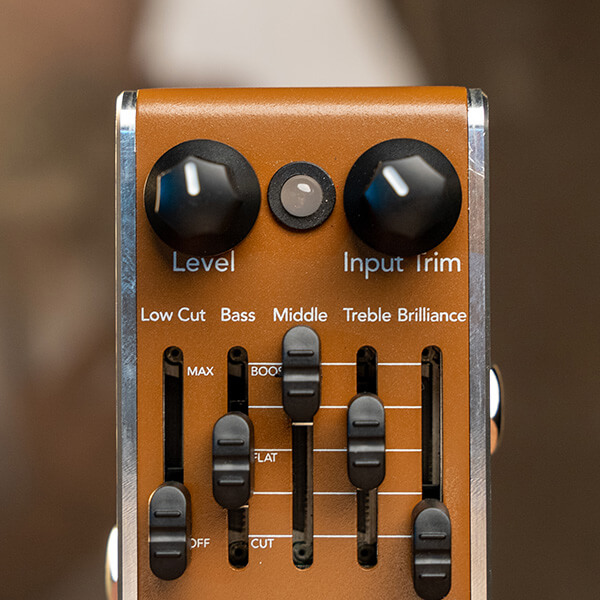

Then, use the four bands of acoustic tone control to sculpt your bass, mids, treble, and brilliance. A sweepable Low Cut fine-tunes the very low frequencies to reduce or enhance thumps and subs.

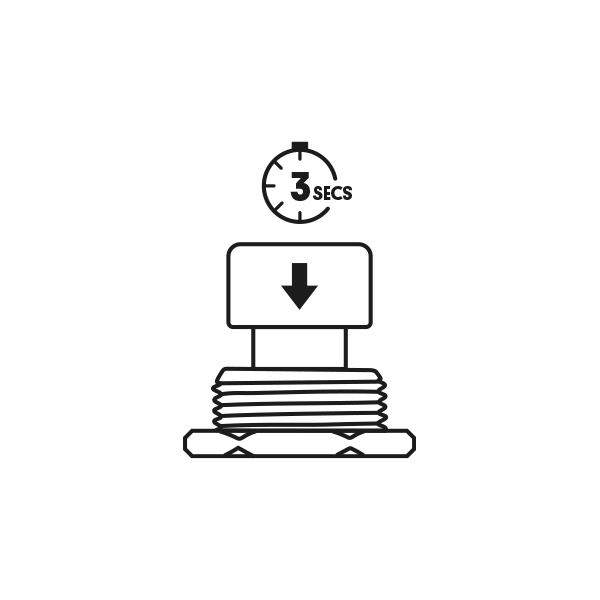

Finally, hold the footswitch to toggle your output polarity. Also known as “phase,” this simple circuit can tame low-frequency howl very effectively.

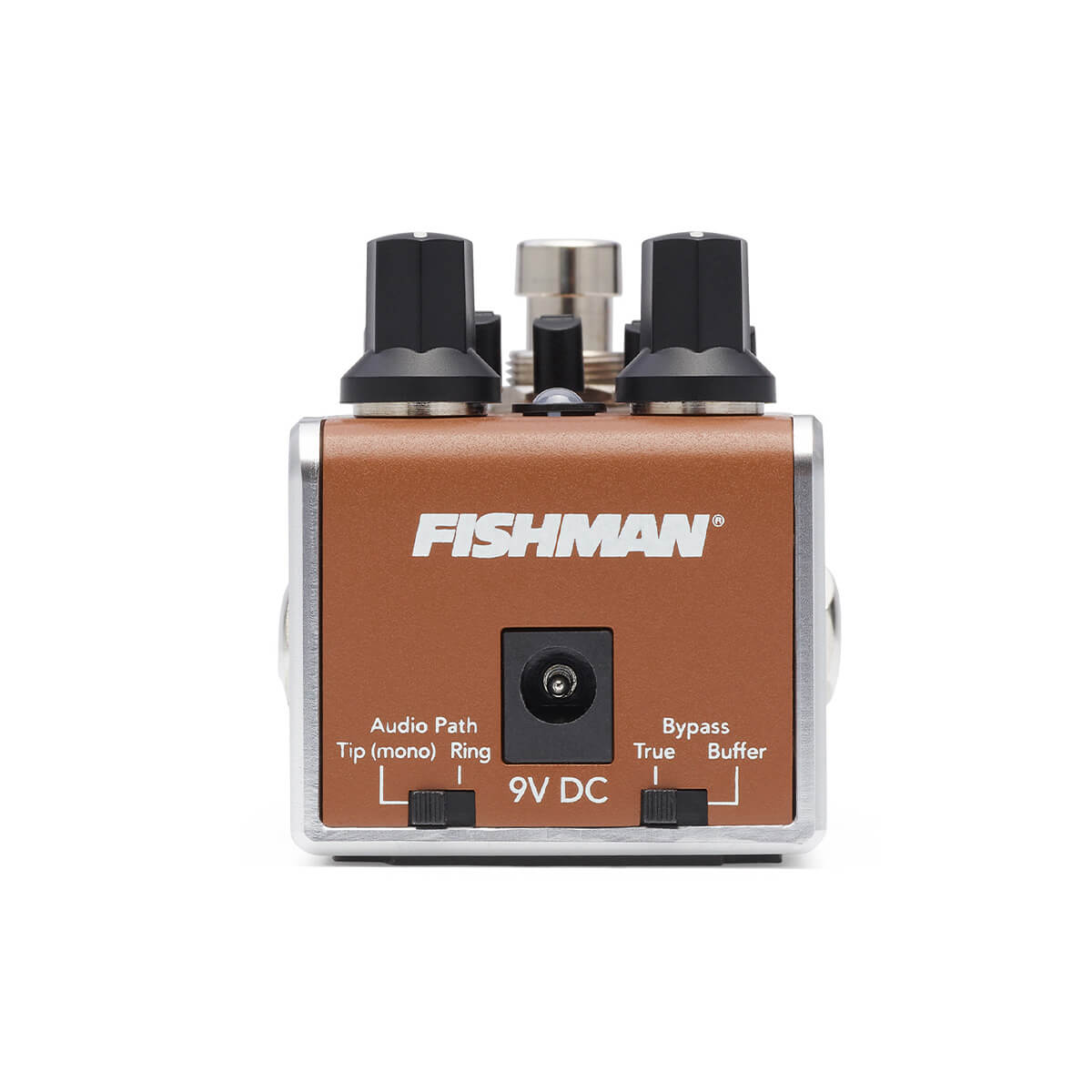

AFX Mini pedals allow you to choose the audio path on which a particular effect will be processed. You do this by flipping the Audio Path switch on the front the pedal.
Learn More
With true bypass, the pedal's electronics are literally removed from the signal chain. For those who prefer a buffered bypass, AFX mini pedals are switchable.
In order to pack a lot of functionality into the smallest stompbox size we could find, AFX Mini's require external power. Be sure to use Fishman 910-R(120VAC) or 910-U(230VAC) power adapter to ensure the above specs.
Like other AFX Minis, press the footswitch to bypass the effect. AFX Pro EQ Mini also lets you choose to mute your audio instead of bypass. Hold the footswitch while applying power and the LED will flash to indicate the mode has changed.
Unlike conventional guitar stompboxes, AFX Pro EQ Mini features an analog preamp that provides up to 20dB of quality gain and impedance matching for most passive, active and magnetic acoustic instruments.
Here are some great settings to help you get started with the Pro EQ Mini. These recommendations make dialing in amazing acoustic tone, quick, easy and fun!
Signal polarity – often crefered to as Phase – changes the pickups relationship to the sound coming from the amplifier, Inverting Phase can reduce feedback. With low volume playing, it can improve the intensity of low frequencies you hear.
5-Band EQ Specially Voiced for Acoustic Instruments
True Bypass with Options for Buffered Bypass or Mute
Feedback-Fighting Phase Control
Innovative Dual Path Routing

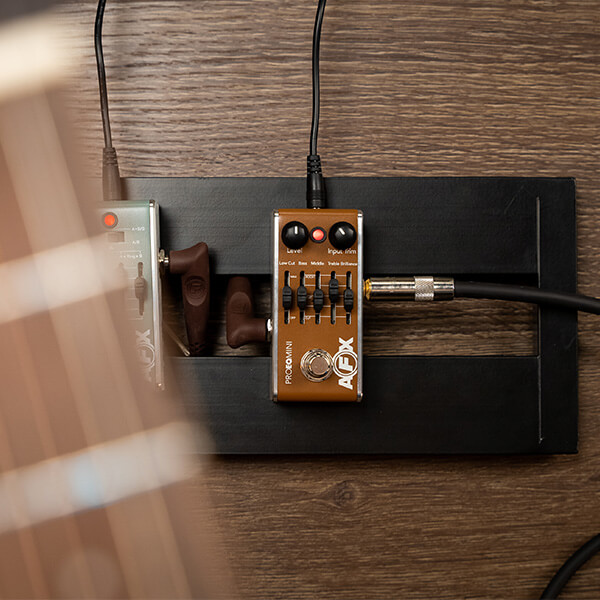

Super Compact Design Fits Almost Anywhere
9V External Power Required (sold separately)
